低场强MRI在儿科和产前胎儿诊断领域中的应用

doi:10.12372/jcp.2025.24e1182

临床儿科杂志 ›› 2025, Vol. 43 ›› Issue (9): 710-715.doi: 10.12372/jcp.2025.24e1182

低场强MRI在儿科和产前胎儿诊断领域中的应用

董素贞¹, 陈浩², 张志勇², 江帆³()

1.国家儿童医学中心上海交通大学医学院附属上海儿童医学中心放射科上海市儿童脑智发育重点实验室（上海 200127）
2.上海交通大学上海交通大学生物医学工程学院磁共振诊疗高端技术国家工程研究中心（上海 200030）
3.国家儿童医学中心上海交通大学医学院附属上海儿童医学中心发育行为儿科上海市儿童脑智发育重点实验室上海脑科学与类脑研究中心（上海 200127）

收稿日期:2024-11-05 录用日期:2025-02-06 出版日期:2025-09-15 发布日期:2025-08-27
通讯作者: 江帆电子信箱：fanjiang@shsmu.edu.cn
基金资助:
上海市儿童脑智发育重点实验室(24dz2260100)

Applications of low field MRI in pediatrics and prenatal fetal diagnosis

DONG Suzhen¹, CHEN Hao², ZHANG Zhiyong², JIANG Fan³()

1. Department of Radiology, Shanghai Children’s Medical Center, Shanghai Jiao Tong University School of Medicine, National Children’s Medical Center; Shanghai Key Laboratory of Child Brain and Development, Shanghai 200127, China
2. School of Biomedical Engineering; National Engineering Research Center of Advanced Magnetic Resonance Technologies for Diagnosis and Therapy (NERC-AMRT), Shanghai Jiao Tong University, Shanghai 200030, China
3. Department of Developmental and Behavioral Pediatrics, Shanghai Center for Brain Science and Brain-Inspired Technology, Shanghai Children’s Medical Center, Shanghai Jiao Tong University School of Medicine, National Children’s Medical Center; Shanghai Key Laboratory of Child Brain and Development; Shanghai Center for Brain Science and Brain-Inspired Technology, Shanghai 200127, China

Received:2024-11-05 Accepted:2025-02-06 Published:2025-09-15 Online:2025-08-27

摘要/Abstract

摘要：

磁共振成像（MRI）扫描仪的磁场强度越高，通常越能在更短时间内获得更高的信噪比与图像分辨率。然而，高场强 MRI 设备存在购置成本高昂、安装要求严苛、维护费用不菲等问题，使其难以广泛普及。相比之下，低场强 MRI 扫描仪因成本较低且具备便携性，已逐步应用于临床及相关科研工作。本文旨在综述低场强 MRI 扫描仪当前在儿科神经系统疾病、新生儿监护室及产前胎儿疾病中的诊断价值，并对其应用前景进行展望，以期全面阐释低场强 MRI 在胎儿及儿科诊断领域的应用价值与发展前景。

关键词: 磁共振成像, 胎儿, 产前诊断, 儿童

Abstract:

Generally, the higher the magnetic field strength of a magnetic resonance imaging (MRI) scanner, the greater the likelihood of achieving a higher signal-to-noise ratio and improved image resolution within a shorter scanning time. However, high-field-strength MRI systems are associated with significant limitations, including high acquisition costs, stringent installation requirements, and substantial maintenance expenditures, which collectively hinder their widespread adoption. In contrast, low-field-strength MRI scanners, due to their relatively lower costs and enhanced portability, have increasingly been integrated into clinical practice and related research settings. This review aims to summarize the current diagnostic applications of low-field-strength MRI in pediatric neurological disorders, neonatal intensive care, and prenatal fetal imaging, while also discussing their future potential. This article seeks to provide a comprehensive overview of the clinical value and developmental trajectory of low-field-strength MRI in fetal and pediatric diagnosis.

Key words: magnetic resonance imaging, fetus, prenatal diagnosis, child

中图分类号:

董素贞, 陈浩, 张志勇, 江帆. 低场强MRI在儿科和产前胎儿诊断领域中的应用[J]. 临床儿科杂志, 2025, 43(9): 710-715.

DONG Suzhen, CHEN Hao, ZHANG Zhiyong, JIANG Fan. Applications of low field MRI in pediatrics and prenatal fetal diagnosis[J]. Journal of Clinical Pediatrics, 2025, 43(9): 710-715.

图/表 4

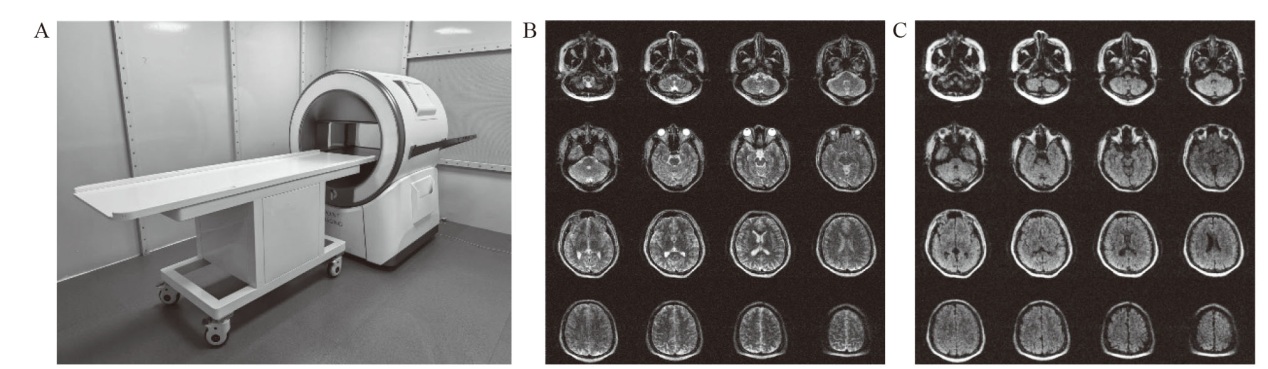

图1

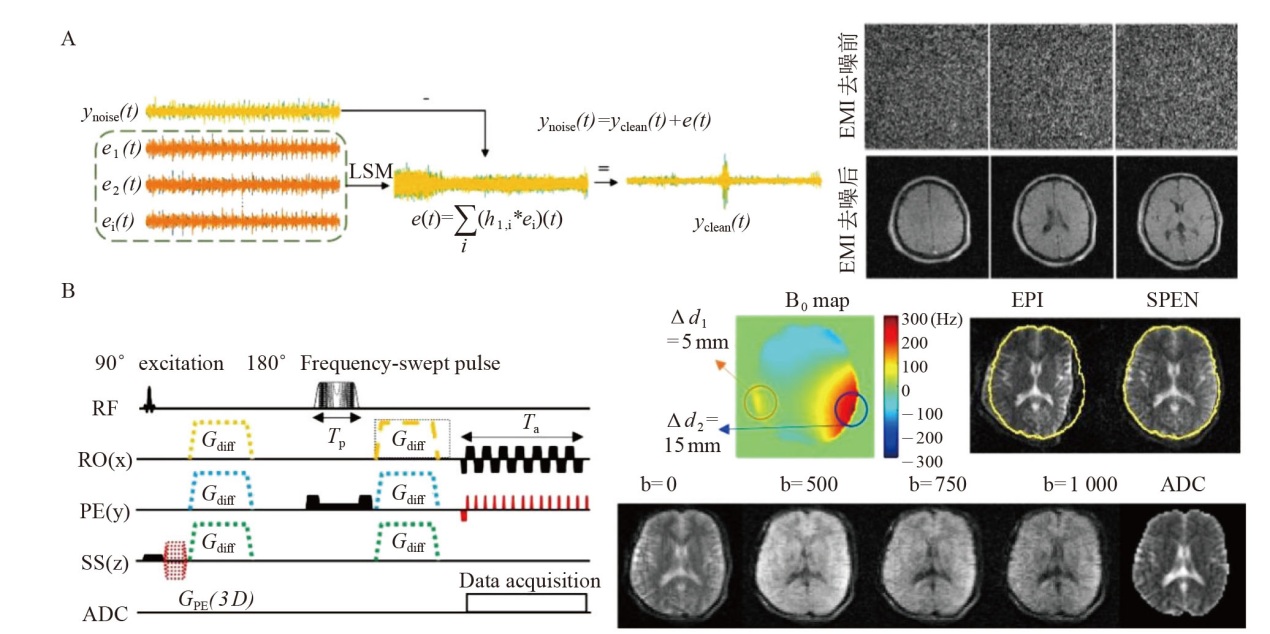

图2

表1

表2

参考文献 33

[1]	Budinger TF, Bird MD. MRI and MRS of the human brain at magnetic fields of 14 T to 20 T: Technical feasibility, safety, and neuroscience horizons[J]. Neuroimage, 2018, 168: 509-531. doi: S1053-8119(17)30090-3 pmid: 28179167
[2]	Cao ZP, Park J, Cho ZH, et al. Numerical evaluation of image homogeneity, signal-to-noise ratio, and specific absorption rate for human brain imaging at 1.5, 3, 7, 10.5, and 14T in an 8-channel transmit/receive array[J]. J Magn Reson Imaging, 2015, 41(5): 1432-1439. doi: 10.1002/jmri.24689 pmid: 24976608
[3]	Yuen MM, Prabhat AM, Mazurek MH, et al. Portable, low-field magnetic resonance imaging enables highly accessible and dynamic bedside evaluation of ischemic stroke[J]. Sci Adv, 2022, 8(16): eabm3952.
[4]	Arnold TC, Freeman CW, Litt B, et al. Low-field MRI: Clinical promise and challenges[J]. J Magn Reson Imaging, 2023, 57(1): 25-44.
[5]	Stanisz GJ, Odrobina EE, Pun J, et al. T1, T2 relaxation and magnetization transfer in tissue at 3T[J]. Magn Reson Med, 2005, 54(3): 507-512. doi: 10.1002/mrm.20605 pmid: 16086319
[6]	Escanye JM, Canet D, Robert J. Frequency-dependence of water proton longitudinal nuclear magnetic-relaxation times in mouse-tissues at 20-degrees-C[J]. Biochim Biophys Acta, 1982, 721(3): 305-311. pmid: 7171630
[7]	Morelli JN, Runge VM, Ai F, et al. An image-based approach to understanding the physics of MR artifacts[J]. Radiographics, 2011, 31(3): 849-866. doi: 10.1148/rg.313105115 pmid: 21571661
[8]	Basar B, Sonmez M, Yildirim DK, et al. Susceptibility artifacts from metallic markers and cardiac catheterization devices on a high-performance 0.55 T MRI system[J]. Magn Reson Imaging, 2021, 77: 14-20.
[9]	Shellock FG. Biomedical implants and devices: Assessment of magnetic field interactions with a 3.0-Tesla MR system[J]. J Magn Reson Imaging, 2002, 16(6): 721-732. pmid: 12451586
[10]	Qiu YQ, Dai K, Zhong SJ, et al. Spatiotemporal encoding MRI in a portable low-field system[J]. Magn Reson Med, 2024, 92(3): 1011-1021. doi: 10.1002/mrm.30104 pmid: 38623991
[11]	Qiu YQ, Chen S, Solomon E, et al. A new approach for multislice spatiotemporal encoding MRI in a portable low-field system[J]. Magn Reson Med, 2024: doi: 10.1002/mrm.30300.
[12]	He YC, He W, Tan L, et al. Use of 2.1 MHz MRI scanner for brain imaging and its preliminary results in stroke[J]. J Magn Reson, 2020, 319: 106829.
[13]	Liu YL, Leong ATL, Zhao YJ, et al. A low-cost and shielding-free ultra-low-field brain MRI scanner[J]. Nat Commun, 2021, 12(1): 7238. doi: 10.1038/s41467-021-27317-1 pmid: 34907181
[14]	Cooley CZ, McDaniel PC, Stockmann JP, et al. A portable scanner for magnetic resonance imaging of the brain[J]. Nat Biomed Eng, 2021, 5(3): 229-239.
[15]	Zhao YJ, Ding Y, Lau V, et al. Whole-body magnetic resonance imaging at 0.05 Tesla[J]. Science, 2024, 384(6696): eadm7168.
[16]	Ayde R, Vornehm M, Zhao YJ, et al. MRI at low field: A review of software solutions for improving SNR[J]. NMR Biomed, 2024: e5268.
[17]	Srinivas SA, Cauley SF, Stockmann JP, et al. External Dynamic InTerference Estimation and Removal (EDITER) for low field MRI[J]. Magn Reson Med, 2022, 87(2): 614-628.
[18]	Zhao YJ, Xiao LF, Liu YL, et al. Electromagnetic interference elimination via active sensing and deep learning prediction for radiofrequency shielding-free MRI[J]. NMR Biomed, 2024, 37(7): e4956.
[19]	Zhao YJ, Xiao LF, Hu JH, et al. Robust EMI elimination for RF shielding-free MRI through deep learning direct MR signal prediction[J]. Magn Reson Med, 2024, 92(1): 112-127. doi: 10.1002/mrm.30046 pmid: 38376455
[20]	Howell BR, Styner MA, Gao W, et al. The UNC/UMN Baby Connectome Project (BCP): An overview of the study design and protocol development[J]. Neuroimage, 2019, 185: 891-905. doi: S1053-8119(18)30259-3 pmid: 29578031
[21]	Edwards AD, Rueckert D, Smith SM, et al. The Developing Human Connectome Project Neonatal Data Release[J]. Front Neurosci-Switz, 2022, 16: 886772.
[22]	Deoni SCL, Bruchhage MMK, Beauchemin J, et al. Accessible pediatric neuroimaging using a low field strength MRI scanner[J]. Neuroimage, 2021, 238: 118273.
[23]	Shen FX, Wolf SM, Bhavnani S, et al. Emerging ethical issues raised by highly portable MRI research in remote and resource-limited international settings[J]. Neuroimage, 2021, 238: 118210.
[24]	Sien ME, Robinson AL, Hu HH, et al. Feasibility of and experience using a portable MRI scanner in the neonatal intensive care unit[J]. Arch Dis Child-Fetal, 2023, 108(1): F45-F50.
[25]	Heiss R, Nagel AM, Lain FB, et al. Low-field magnetic resonance imaging[J]. Invest Radiol, 2021, 56(11): 726-733.
[26]	Padormo F, Cawley P, Dillon L, et al. In vivo T1 mapping of neonatal brain tissue at 64 mT[J]. Magn Reson Med, 2023, 89(3): 1016-1025.
[27]	Cawley P, Padormo F, Cromb D, et al. Development of neonatal-specific sequences for portable ultralow field magnetic resonance brain imaging: a prospective, single-centre, cohort study[J]. Eclinicalmedicine, 2023, 65: 102253.
[28]	Ren JY, Zhu M, Wang GH, et al. Quantification of intracranial structures volume in fetuses using 3-D volumetric MRI: Normal values at 19 to 37 weeks' gestation[J]. Front Neurosci-Switz, 2022, 16: 886083.
[29]	Danzer E, Eppley E, Edgar JC, et al. Effects of 1.5-T versus 3-T magnetic resonance imaging in fetuses: is there a difference in postnatal neurodevelopmental outcome? Evaluation in a fetal population with left-sided congenital diaphragmatic hernia[J]. Pediatr Radiol, 2023, 53(6): 1085-1091. doi: 10.1007/s00247-023-05629-2 pmid: 36823375
[30]	Verdera JA, Story L, Hall M, et al. Reliability and feasibility of low-field-strength fetal MRI at 0.55 T during pregnancy[J]. Radiology, 2023, 309(1): e223050.
[31]	Ponrartana S, Nguyen HN, Cui SX, et al. Low-field 0.55 T MRI evaluation of the fetus[J]. Pediatr Radiol, 2023, 53(7): 1469-1475. doi: 10.1007/s00247-023-05604-x pmid: 36882594
[32]	Marques JP, Simonis FFJ, Webb AG. Low-field MRI: An MR physics perspective[J]. J Magn Reson Imaging, 2019, 49(6): 1528-1542. doi: 10.1002/jmri.26637 pmid: 30637943
[33]	Man CSP, Lau V, Su S, et al. Deep learning enabled fast 3D brain MRI at 0.055 tesla[J]. Sci Adv, 2023, 9(38): eadi9327.

序列名称	扫描参数	扫描时间/min
快速自旋回波T1加权成像	重复时间(TR)，1 500 ms；回波时间(TE)，6 ms；反转时间(TI)，300 ms；分辨率 1.5 mm×1.5 mm×5 mm；36层	4:52
快速自旋回波T2加权成像	TR，2 200 ms；TE，253 ms；分辨率1.5 mm×1.5 mm×5 mm；36层	5:54
T2加权液体反转恢复成像	TR，4 000 ms；TE，228 ms；TI，1 400 ms；分辨率1.6 mm×1.6 mm×5 mm；36层	9:00
弥散加权成像	TR，1 000 ms；TE，100 ms；b=0,800 s/mm²；分辨率2.4 mm×2.4 mm×6 mm；30层	9:27

序列名称	扫描参数	扫描时间/s
快速自旋回波序列	TR，98 ms；TE，180 ms；FOV 350 mm×350 mm；Matrix 224×224；分辨率1.6 mm×1.6 mm×3 mm；30层	1:00
平衡稳态自由进动序列	TR，6.02 ms；TE, 3.01 ms；FOV 350 mm×350 mm；Matrix 192×192；分辨率1.8 mm×1.8 mm×3 mm；30层	0.45
实时电影序列	TR，570 ms；TE，1.82 ms；FOV 350 mm×350 mm；Matrix 128×128；分辨率2.8 mm×2.8 mm×10 mm；1层	0.6/层
快速T1加权成像	TR，113 ms；TE，2.43 ms；FOV 295 mm×350 mm；Matrix 138×192；分辨率1.8 mm×1.8 mm×4 mm；20层	16
弥散加权成像	TR，2 500 ms；TE，74 ms；FOV 294 mm×330 mm；Matrix 82×92；分辨率3.6 mm×3.6 mm×4 mm；20层；b=0,700 s/mm²；	30
